So over New Year I was thinking, what would be a great topic for the first post in 2024 and with the current series of posts covering the little expedition down-under, this time last year having got us to Cairns, what better than to take a look at the wonderful experience, the Australian Armour and Artillery Museum, or 'Oz Armour', is for those of us, who like nothing better than spending time getting close up and personal with military vehicles and big guns.
This is a very large collection of militaria, vehicles and guns and I wanted to make this post a comprehensive overview, but it quickly became apparent that the size of it and the number of pictures I took warranted splitting things up into two posts, with Part Two to follow looking a the German and Modern collections plus the display of small arms and uniforms.
The opportunity to visit arose with our staying close by, at Port Douglas, and with Carolyn agreeing to amuse herself by the beach, I naturally grabbed the car to make the short drive down the Cook Highway to the museum to spend the late morning and early afternoon absorbing the depth of this collection in a somewhat unexpected part of the world, it seeming rather incongruous to see Tiger and Panther tanks parked up in a giant hanger in Queensland.
 |
| JJ's on Tour - Port Douglas, Kuranda Skyrail & Great Barrier Reef, Australia. |
In my last post, link above, I covered our arrival on this the ninth leg of our Australian leg of our four month tour across the Pacific and the anticipation for this visit only whetted by the vehicle seen below, parked up at Cairn Airport, in the markings of my Dad's old Division, Guards Armoured, a seemingly good omen that this would be a very memorable stop over, amongst many that we had already encountered on this trip.
 |
| Our route so far on our travels through Australia, starting down in Melbourne just before New Year 2023. Map courtesy of https://www.freeworldmaps.net/australia/ |
Whilst putting this post together and reliving the visit in my mind's eye, I have to wish the chaps at the museum well as I recall the recent videos from the area showing the building seen below that houses the collection up to its foundations in water following the cyclone and massive rainfall that hit this area of Queensland just before Xmas.
I know that they had a bit of flooding in the lower gallery that houses the collection of small arms and uniforms from World War II, but as I understand were not damaged in the deluge as per the rest of the collection, which was extremely good news.
 |
| The wildlife in these parts quickly reminds you that this is not Bovington in Dorset! |
In addition I would extend my thanks to the staff at The A.A.& A. Museum for their enthusiastic welcome, especially Alex who noting my avid interest and rapid photography very kindly took the time to give me a guided tour of the most impressive items in the collection together with the back story of how they came to be there and in a lot of cases how the chaps set about reconstructing many of the vehicles I have pictured here, with I think some sixty percent now restored back to running order.
 |
| https://askarimedals.com/ |
I should add that Alex is the owner of Askari Medals, dealing in Military Service Medals and badges, covering the Boer War, WWI and WWII, link above.
 |
| The view that greets the first time visitor - let the fun begin! |
The careful reconstruction of many of the exhibits seen is wonderfully captured in one of the first to be encountered on entering the exhibition hall, with the British 6-inch howitzer seen below reconstructed from the remains of three such weapons and is indeed a tribute to the skill of those involved at the museum in the dedicated preservation of these increasingly rare military artefacts.
 |
| British breech loading 6-inch howitzer |
This is a very comprehensive collection of vehicles and guns, some I had never seen before in other collections and with others unique to the collection or very specific to the Australian experience in the World Wars and Post War eras, not so completely covered as well back home, and so not knowing when I might get the chance to return, I decided to take plenty of pictures to inform my own wargaming interests and thought I would share that endeavour here for others as well; and so I have broken the post up into specific parts of the collection as I viewed them, with World War II, like many, being a primary interest of mine so receiving a greater focus.
Australian Developed and British Empire WWII Vehicles & Guns
Australian Cruiser IV Tank, Sentinel AC E1 17-Pounder
The only tank produced in quantity in Australia during World War II in response to the war in Europe and later to the the threat posed by Japan in the Pacific, the Sentinel featured a single piece cast hull, with the AC I originally armed with a 2-pounder gun, and like the Canadian RAM tank was based on the drive train, engine and lower hull of the American M3 Medium Tank.
.jpg)
With 2.5 inch frontal and 1.8 inch rear and side armour, the Australian tank was playing catch-up in July 1943 with the newer German tanks and the programme was ended with just sixty-five production vehicles completed with the decision taken to direct the money put into the AC production run into railway infrastructure, ready to be able to deliver the numbers of American tanks set to arrive in the country to arm the Australian tank corps.
The exhibit seen here is an AC IE hull with an AC III turret mounting a 17-pounder gun to represent the AC IV prototype seen in the wartime photo above.
The development of this model of Sentinel tank played a key role in the Allied victory in North West Europe in 1944-45, as the work by the development team to put a 17-Pounder gun into the compact turret of this medium tank informed greatly the development of the British Sherman IC and VC 'Firefly' with the Australian team helping by sharing their experience with the British design teams that developed perhaps the most potent Allied tank in that theatre.
 |
| Australian Cruiser IV Tank, Sentinel AC E1 17-Pounder |
Australian Local Pattern 2 (LP2) Carrier
Based on the British Bren Carrier No.2 Mk.1, the first Australian carrier was built at the Victorian Railway Workshops, Newport, in March 1940 and modified to Australian conditions.
 |
| Australian Local Pattern 2 (LP2) Carrier |
Australian carriers served with Australian troops in the Middle East, Malaya, New Guinea and in the south-west Pacific.
Australian Dingo Armoured Scout Car
With only 245 of these very Australian light armoured cars being built, this is a bit of a rare beast to see.Built by Ford Motor Company and based on their commercially available 30cwt truck chassis, it was fitted with a Marmon-Harrington all wheel drive kit and powered by a Ford V8 engine, giving it a top speed of about 50mph, but with a somewhat restricted off-road mobility due to the front axle often distorting when driving over rough ground.
 |
| Australian Dingo Armoured Scout Car |
The Dingo never saw service overseas and were phased out of production in early 1943 in favour of better types, such as the Canadian produce Lynx scout car.
Australian Ordnance 25-Pounder (Short)
The story behind this very Australian redesign of the British QF (Quick Firing) 25-pounder field gun/howitzer is indicative of the ingenuity of Australian troops returning home from operations in the North Western Desert, to face the Japanese threatening their homeland and finding their Infantry Divisional structure, based on the British doctrine for fighting in North West Europe and extended to desert operations, totally unsuitable for jungle fighting in terrain such as that encountered in the roadless stretches of New Guinea, where many divisional vehicles could not operate and guns had to be light and easy to disassemble and reassemble for transport in aircraft or on the backs of mules.
 |
| Australian Ordnance 25-Pounder (Short) |
The new guns used as many of the standard 25-pounder parts as possible, but with significant differences designed to reduce the weapon's weight, such as shortening the gun's barrel and recuperator, and making the trail lighter, whilst also retaining the same ammunition as used with the standard weapon, that saw a slight reduction in range to about 87% of that of the standard 25-pounder.
 |
| 25-pounder armour piercing and HE rounds. |
British Ordnance 2-Pounder Anti-Tank Gun
The British 2-pounder (40mm) anti-tank guns was the same gun that was mounted on British tanks in the earl years of WWII and was a very effective anti-tank weapon for that period, already proven against German tanks in France 1940 and in the Desert War against Italy and later the Afrika Korps in early 1941.
Perhaps its main weakness was the lack of an effective high explosive round, which was to prove a major problem for British tanks armed with the gun coming up against German anti-tank gun screens, particularly in North Africa, where the Besa machine guns were unable to knock these guns out and long range, a problem not overcome until heavier guns came into British service, such as the 6-pounder and US 75mm types.
Against the Japanese, as with the Italians, the lack of an HE round was less of an issue and up against comparatively weakly armoured tanks, the 2-pounder was again to prove itself very formidable, with the Australian gunners of the 13th Australian Anti-Tank Battery providing the Japanese pursuit through Malaya on their drive to Singapore a salutary lesson at a well executed ambush at Bakri, knocking out ten Type 95 Ha-Go tanks on the 15th January 1942.
 |
| BAKRI, MALAYA, 1942-01-15. GUNNERS OF 13TH AUSTRALIAN ANTI-TANK BATTERY USING A 2 PDR ANTI-TANK GUN ACTION AGAINST JAPANESE TYPE 94 LIGHT TANKS AT A ROAD BLOCK. THE FORWARD TANK HAS BEEN SET ON FIRE WHILST OTHER TANKS ON THE OTHER SIDE OF ROAD BLOCK, WHICH IS A FELLED RUBBER TREE, HAVE BEEN DISABLED. TWO GUNS OF THIS BATTERY KNOCKED OUT FIVE TANKS. https://www.awm.gov.au/collection/040367 |
 |
| A two pounder Anti-Tank Gun of the 4th Anti-Tank Regiment, 8th Australian Division, AIF, directed by VX38874 Sergeant (Sgt) Charles James Parsons, of Moonee Ponds, Vic (centre), with two crew members, identified as VX56083 Gunner (Gnr) Lenard Edward Coutts and Gnr Ken Daniels, standing against their Anti-Tank Gun in a clearing near the road block at Bakri on the Muar-Parit Sulong Road. https://www.awm.gov.au/collection/068589 |
 |
| BAKRI, MALAYA, 1942-01-15. ONE OF THE TEN JAPANESE TYPE 95 HA-GO LIGHT TANKS KNOCKED OUT BY GUNNERS OF 13TH AUSTRALIAN ANTI-TANK BATTERY USING 2 PDR GUNS IN AN AMBUSH DURING A WITHDRAWAL IN MALAYA. THIS IS THE TANK SHOWN ON THE NEAR SIDE OF THE ROAD BLOCK IN PHOTO NO 040367. https://www.awm.gov.au/collection/040370 |
The 2-pounder was introduced into Australian service in 1939, seeing service in North Africa, Syria, Greece, Malaya and New Guinea, later replaced in 1941 by the 6-pounder.
The Sentinel Tank was the Australian cruiser tank and this the Mark I (AC 1) began as a 2-pounder equipped design in November 1940, later designated Sentinel in February 1942.
On six Sentinel's survive today, with five in Australia and one in the collection at Bovington, UK.
Australian Matilda No.3 Mk. I Dozer Tank
The Infantry Tank Mark II or Matilda II was a British infantry tank that saw service in France and North Africa in the early years of WWII, where its heavy armour made it an excellent choice as a infantry support tank.
By 1942 the tank was practically obsolete when facing the heavier German tanks and ever increasing calibres of anti-tank guns, but with war against the Japanese in the Pacific, it found a new theatre where its effectiveness as an infantry support tank once again reasserted itself.
Australian Ford 2-Pounder Anti-Tank Portee
The 2-Pounder Portee was used extensively by British and Commonwealth Forces in North Africa in particular, providing a mobile platform for the gun that could enable it to fire on the move, stopping in favourable ground to fire at enemy armour before moving away to cover or to deploy the gun off the truck to give it better cover and a much lower profile.
 |
| An Australian 2-Pounder Portee on exercise in 1942 |
Canadian RAM Kangaroo Armoured Personnel Carrier
I last saw a RAM tank back in the previous October 2021 during our stay over in Vancouver standing outside the Old Drill Hall of the British Columbia Regiment, and in that post I mentioned the later development of this Canadian tank into the Kangaroo Armoured Personnel Carrier.
 |
| The Canadian RAM II stands guard outside the Old Drill Hall in Vancouver, a memorial to the Royal Canadian Armoured Corps. JJ's Wargames on Tour - Rams & Easy 8's in Vancouver, Beautiful British Columbia |
So it was a real treat to see this very important vehicle in the history of armoured warfare in this collection, marking as it does, a very uniquely Canadian contribution, being the first purpose built fully tracked armoured personnel carrier (APC) replacing as it did the more familiar option of half-track carriers and offering superior tactical mobility on the battlefield coupled with greater armour protection to infantry now able to accompany tanks into the attack.
 |
| A Priest Kangaroo personnel carrier of 209th Self-Propelled Battery, Royal Artillery, transports infantry of 78th Division near Conselice, Italy, April 1945. |
The utility of using APC's was first demonstrated by Canadian Lieutenant General Guy Simmonds, leading Canadian II Corps, when he initiated the use of 72 converted M7 Priest SP Guns as the first type of Kangaroo carrier, with their guns removed and the resulting aperture welded over capable of transporting twelve assault infantry, and used in Operation Totalize 8th August 1944 south of Caen in Normandy.
However despite the demonstrated success of the new APC's in reducing infantry casualties in the attack, the need for SP Gun vehicles required the development of a new approach which would lead to the adoption of the RAM tank chassis.
Most of these RAM Kangaroo's were operated by the Canadian 1st Armoured Personnel Carrier Squadron and the 49th Armoured Personnel Carrier Regiment, part of British 79th Armoured Division, better known as 'Hobart's Funnies'.
With a crew of 2, the Kangaroo could carry 8 to 10 passengers, safe within her 'pouch' as seen below.
Canadian Sexton Self Propelled Artillery Mk. II
The 25pdr SP, tracked, Sexton was a Canadian-designed self-propelled artillery vehicle of the Second World War. It was based on Canadian-built derivatives of the American M3 Lee and M4 Sherman tank chassis. Canada had set up to produce the Ram tank using the M3 chassis and Grizzly (a copy of the M4) to complement US medium tank production; when Sherman production in the US expanded and supply was no longer a problem, it was decided in 1943 to switch the Canadian production lines to produce the Sexton to give the British Army a mobile artillery gun using their 87.6 mm (3.45 in) Ordnance QF 25-pounder gun-howitzer for commonality with towed guns. The Sexton could fire either HE shell or an armour-piercing shell. It found use in the Canadian, British, and other British Commonwealth armies, as well as other countries.
 |
| Sexton SPA of the 13th Honourable Artillery Company (HAC), the oldest regiment in the British Army, here part of 11th Armoured Division, fighting in Normandy, Netherlands and across the Rhine into Germany. |

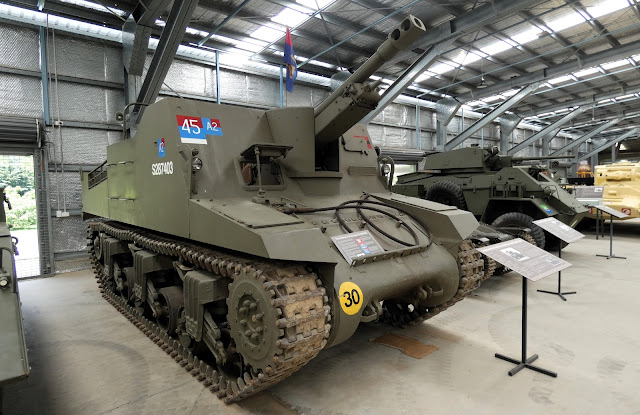

This is Sexton S-287403, produced in early 1945 by the Montreal Locomotive Company and was the 2,115th Sexton produced from a final production run of 2,150 such vehicles.
Entering into service in March or April 1945 it was not shipped overseas as the war was reaching its end, and after service with the Portuguese Army in the 70's was returned to Canada for an 8-year full restoration in London, Ontario, before being purchased by the museum in 2019, and is displayed in the markings of 2nd vehicle, A Troop of the 19th Field Regiment, Royal Canadian Artillery, 1st Canadian Army, July 1944 to May 1945.
Canadian Lynx 2 Scout Car
At first glance, I took this to be another Daimler (Dingo) Scout Car, similar to the one shown above on display at Cairn's airport, but is in fact the Canadian derivative of that vehicle supplied to Canadian forces in WWII, the Lynx Scout Car.
The Lynx 2 differed from the Mk.1 in adopting the canvas roof as used on the Dingo and was fitted out with heavier duty axles and springs resulting in a slightly smaller steering ratio than Lynx 1.
This particular example is shown in the markings of the Australian 1st Armoured Division.
British Humber Armoured Car Mk. IV
The Humber Armoured Car was one of the most widely produced British armoured cars of the Second World War. It supplemented the Humber Light Reconnaissance Car and remained in service until the end of the war. |
| Humber Light Reconnaissance Car Mk IIIA of No. 2806 Armoured Car Squadron RAF Regiment near Eindhoven, the Netherlands, 1944-1945. |
 |
| A battle-scarred Humber IV of the 7th Canadian Reconnaissance Regiment, 17th Duke of York's Royal Canadian Hussars in Normandy, France, 18-20 July 1944. 3rd Canadian Infantry Division. |
The exhibit below was acquired in the UK and is seen here displayed in the markings of British 11th Armoured Division and the TAC sign for the Division Armoured Recce Regiment, which was 2nd Northamptonshire Yeomanry, later the 15th/19th Kings Royal Hussars as of 8th August 1944.
British Archer Self Propelled Anti-Tank Gun
The Self Propelled 17pdr, Valentine, Mk I, Archer was a British tank destroyer of the Second World War based on the Valentine infantry tank chassis fitted with an Ordnance QF 17 pounder gun. Designed and manufactured by Vickers-Armstrong, 655 were produced between March 1943 and May 1945. It was used in north-west Europe and Italy during the war. This vehicle was unusual in that its gun faced the rear of the chassis instead of the front.
Under military doctrines prevalent in Commonwealth armies at the time, vehicles such as the Archer were "self-propelled anti-tank guns" and operated by the Royal Artillery (RA), rather than Royal Armoured Corps (RAC). This was the same for two vehicles of US origin, that were initially conceived as "tank destroyers" though not used as such by the British: the 3 in. Self-Propelled Mount M10 and 17-pdr Self-Propelled Achilles.)
 |
| An Archer near Nutterden, 9 February 1945. Photo: - IWM |
British Valentine Infantry Tank Mk. III
I have a special place in my heart for the Valentine, as it was on this tank that my Dad learnt to drive, after volunteering for service with Guards Armoured Division in 1943, then mustering and training in the UK for the planned invasion of Europe and before the division was issued Sherman V's.I know Dad spoke fondly of the Valentine, but I think fell in love with the Sherman in comparison, being much faster and certainly more reliable, and I well remember getting a tour of the inner workings of this tank from the chaps at Bovington after I had explained my personal interest.
Designed to replace the Matilda, The Tank, Infantry, Mk III, Valentine was an infantry tank produced in the United Kingdom during World War II. More than 8,000 of the type were produced in eleven marks, plus various specialised variants, accounting for approximately a quarter of wartime British tank production.
 |
| Valentine Mk 3 in North Africa carrying infantry from a Scottish regiment |
The many variants included riveted and welded construction, petrol and diesel engines and a progressive increase in armament. It was supplied in large numbers to the USSR and built under licence in Canada. It was used extensively by the British in the North African campaign. Developed by Vickers, it proved to be both strong and reliable.
The display shows the 2-pounder rounds used by the earlier Marks including the III but the Mark VIII and the better Mark IX would would be upgraded with a turret modification to carry the 6-pounder gun in the race to keep up with heavier better armed German types.
British Matilda Mk. II Infantry Tank
The Infantry Tank Mark II, best known as the Matilda, is a British infantry tank of the Second World War.
The design began as the A12 specification in 1936, as a gun-armed counterpart to the first British infantry tank, the machine gun armed, two-man A11 Infantry Tank Mark I. The Mark I was also known as Matilda, and the larger A12 was initially known as the Matilda II or Matilda senior. The Mark I was abandoned in 1940, and from then on the A12 was almost always known simply as "the Matilda".
 |
| New Zealand soldiers recapture a Matilda tank, previously captured by the Germans, and take prisoner its German crew. It had been knocked out by an anti-tank gun after an attempt to break through the Allied lines, 3 December 1941. |
With its heavy armour, the Matilda II was an excellent infantry support tank but with somewhat limited speed and armament. It was the only British tank to serve from the start of the war to its end, although it is particularly associated with the North Africa Campaign. Only two were available for service by the outbreak of the World War II in 1939. It was replaced in front-line service by the lighter and less costly Infantry Tank Mk III Valentine beginning in late 1941.
British Churchill Infantry Tank Mk. VII
British Infantry Tank design reached its epitome with the A22 or Churchill until experience demonstrated to British tank designers the need to produce the all-round main battle tank that would eventually lead to the Centurion arriving too late to have any impact in WWII.The Tank, Infantry, Mk IV (A22) Churchill was a British infantry tank used in the Second World War, best known for its heavy armour, large longitudinal chassis with all-around tracks with multiple bogies, its ability to climb steep slopes, and its use as the basis of many specialist vehicles. It was one of the heaviest Allied tanks of the war.
With side plate fittings indicating this particular vehicle was originally an AVRE (Armoured Vehicle Royal Engineers) for battlefield engineer support, this exhibit was acquired as a derelict wreck from a farm in New South Wales and was restored to its current condition by the museum.
The origins of the Churchill's design lay in the expectation that war in Europe might be fought in conditions similar to those of the First World War, and thus emphasised the ability to cross difficult ground. The Churchill was hurried into production in order to build up British defences against a possible German invasion. The first vehicles had flaws that had to be overcome before the Churchill was accepted for wide use. After several marks (versions) had been built, a better-armoured specification, the Mark VII, entered service with the British Army. The improved versions performed well in the later stages of the war.
The Churchill was used by British and other Commonwealth forces during the North African, Italian and North-West Europe campaigns. In addition, 344 Churchills were sent as military aid to the Soviet Union during the Second World War and more than 250 saw active service on the Eastern Front.
British QF (Quick Firing) 3.7-Inch Heavy Anti-Aircraft Gun
The QF 3.7-inch AA was Britain's primary heavy anti-aircraft gun during World War II. It was roughly the equivalent of the German Flak 8.8 cm and American 90 mm, but with a slightly larger calibre of 3.7 inches, approximately 94 mm. Production began in 1937 and it was used throughout World War II in all theatres except the Eastern Front. It remained in use after the war until AA guns were replaced by guided missiles beginning in 1957.
The gun was produced in two versions, one mobile and another fixed. The fixed mounting allowed more powerful ammunition, Mk. VI, which gave vastly increased performance. Six variants of the two designs were introduced. The gun was also used as the basis for the Ordnance QF 32-pounder anti-tank gun variant used on the Tortoise.
The gun's effective ceiling varied depending on the predictor and fuse. The Mk VI ordnance significantly increased the potential effective ceiling. The British definition of effective ceiling at the start of World War II was "that height at which a directly approaching target at 400 mph can be engaged for 20 seconds before the gun reaches 70° elevation"
Mk III Ordnance, Predictor No. 1 and Fuse No. 199 - 23,500 feet
Mk III Ordnance, Predictor No. 1 and Fuse No. 208 - 24,600 feet
Mk III Ordnance, Predictor No. 2 and Fuse No. 208 - 25,300 feet
Mk III Ordnance, Predictor N. 11 and Fuse No. 208 - 32,000 feet
Mk VI Ordnance, Predictor N. 11 and Fuse No. 208 - 45,000 feet
 |
| QF 3.7 inch anti-aircraft guns in Hyde Park, London in 1939. |

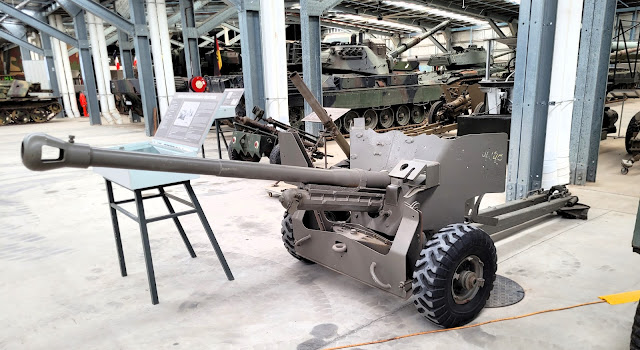

British 6-Pounder Anti-Tank Gun
The Ordnance Quick-Firing 6-pounder 7 cwt, or just 6-pounder, was a British 57 mm gun, serving during the Second World War as a primary anti-tank gun of both the British and United States Army (as the 57 mm Gun M1). It was also used as the main armament for a number of armoured fighting vehicles.
Although designed before the start of the war, it did not reach service until the North African Campaign in April 1942, first seeing action in May at Gazala and having an immediate impact on the battlefield able to penetrate any enemy tank then in service. There, it replaced the 2-pounder as an anti-tank gun, allowing the 25-pounder gun-howitzer to revert to its intended artillery role.
Six pounder anti-tank guns were used by Australian troops in the Middle East, New Guinea and the islands.
 |
| A U.S. 57 mm M1 gun firing from Champs-Vauverts gate in Saint-Malo |
British 17-Pounder Mk. II "Pheasant" & Ordnance QF Anti-Tank Gun
Also known by the 17/25 pounder designation, a stop-gap measure named Pheasant mated the 17 pounder gun with a modified 25 pounder carriage. This enabled the gun to be pressed into service before its own carriage design was ready.
 |
| A British 'Pheasant' 17-pdr anti-tank gun in action on the Medenine front in Tunisia, 11 March 1943. |
The 17-pounder used the following ammunition types:
- Armour Piercing Capped (APC) Armour Piercing Capped was a basic AP shell used with field guns, but was not used when the 17pdr was mounted in the Sherman Firefly tank.
- Armour Piercing, Capped, Ballistic Capped (APCBC) Armour Piercing, Capped, Ballistic Capped ammunition could penetrate 163 mm of armour at 500 metres and 150 mm at 1000 m.
- Armour-piercing discarding sabot (APDS) Armour-piercing discarding sabot could penetrate 256 mm of armour at 500 m and 233 mm at 1000 m, and allowing it in theory to penetrate the armour of even the German Tiger II heavy tank. Most sources are in agreement that APDS was not available on D-Day itself, but reached Normandy in increasing amounts by the end of June or early July 1944. It was available for the breakout battle from Normandy and the advance to the Netherlands and Germany. The weight of the enclosed shot, excluding the enclosing sabot, was 7.7 lb (3.5 kg).
- High Explosive (HE) The HE shells for the 17-pounder had smaller bursting charges (Mk 1: 1.28 lbs, Mk 2: 1.06 lbs) than those for the 75mm gun used by the Sherman (M48: 1.47 lbs, Mk 1: 1.64 lbs).
- Practice, Shot Mk 10 "The components of this practice round are similar to those of Shot APCBC, except for the projectile. The projectile is made of cast iron and is uncapped. It is fitted with tracer."
APCBC ammunition was the standard ammunition for the gun, while APDS shot was used for about 6% of the average load of a 17-pounder-equipped British tank.
While offering greater penetration, the smaller (sub-calibre) tungsten core of APDS was considered to provide less accurate fire than APCBC ammunition at ranges beyond 500 yards. This was due to the much lesser visible impact of rounds that fell short, making it hard to spot the fall of shot and correct aim. The APDS was also considered to cause less damage to an enemy tank if it did penetrate the armour. After penetration the core usually disintegrated.
The 17-pounder produced a very large muzzle flash due to the large amount of propellant in its cartridges. Muzzle blast was also significant, described by crews of the anti-tank gun variant as resembling a hard slap on the chest.
While offering greater penetration, the smaller (sub-calibre) tungsten core of APDS was considered to provide less accurate fire than APCBC ammunition at ranges beyond 500 yards. This was due to the much lesser visible impact of rounds that fell short, making it hard to spot the fall of shot and correct aim. The APDS was also considered to cause less damage to an enemy tank if it did penetrate the armour. After penetration the core usually disintegrated.
The 17-pounder produced a very large muzzle flash due to the large amount of propellant in its cartridges. Muzzle blast was also significant, described by crews of the anti-tank gun variant as resembling a hard slap on the chest.
Back in 2018, Steve M and I had a great day out at the Chalke Valley History Festival at which they had on display a towed 17-Pounder set up in one of the nearby fields and the owner took the time to talk about how well balanced this very big gun is on its purpose built carriage, making it a relatively simple task for a well drilled crew to manoeuvre the weapon onto a new facing should the situation demand, plus there's nothing quite like seeing these old weapons in their natural environment.
 |
| JJ's Wargames - Chalke Valley History Festival 2018 |
British BL (Breech Loading) 5.5-Inch Medium Gun
The BL 5.5-inch gun was a British artillery gun introduced during the middle of the Second World War to equip medium batteries.The first units were equipped in UK in the summer of 1941 and in North Africa a year later, 20 guns equipped British and Free French batteries at El Alamein. Subsequently, it also equipped Canadian, Australian, South African, Polish and Indian regiments, and after the war, it was also used by New Zealand. In the Second World War the normal organization was a regiment of 16 guns organized into two batteries.
In 1944 an 82-pound (37 kg) shell was introduced along with Charge Super giving a maximum muzzle velocity of 1,950 feet per second (590 m/s) and a range of 18,100 yards (16,600 m) yards. The new lighter shell contained 1.5 pounds (0.68 kg) more explosive and gradually replaced the older, heavier shell.
 |
5.5-inch gun firing near Vallee, Normandy, 14th August 1944. |
In addition to high explosive rounds, there were several types of chemical shells weighing between 90 and 98 pounds (41 and 44 kg) and 100-pound (45 kg) coloured smoke shells; coloured flare shells were also developed. After World War 2, only HE was used. There was no AP (armour-piercing) round for the gun but, in an emergency, gunners were taught to remove the impact fuse and fire the unfused high explosive as an AP substitute.
The normal HE fuse was No 117, a percussion, impact fuse that was introduced in 1920 and saw use until the 1960s. In late 1944, the T100 proximity fuse became available.
British QF 3.7-Inch Mountain Howitzer
Ordnance, QF 3.7-inch howitzer is a mountain gun, used by British and Commonwealth armies in the First and Second World Wars, and between the wars.
 |
| A 3.7-inch howitzer of 158th Field Artillery Regiment, 36th Infantry Division, in action against Japanese positions south of Mawlu, Burma, 3rd November 1944. |
The howitzer has a split trail, the first British weapon to do so, which allows firing at very high angles (a useful feature in mountainous terrain). It also has a large rectangular shield to protect the crew from small-arms fire, but this was often omitted to save weight. When it was first introduced, the howitzer had two wooden wheels and was light enough be towed by two horses. Later marks have pneumatic tyres and could be towed by any light vehicle, such as the Bren Carrier or jeep.
The propellant casing had five "charge zones", but HE was restricted to no more than "charge four", to prevent premature detonation of the shell. The Australian Army did employ charge five in Papua New Guinea in emergencies – the gun crews referred to it as "O'Hara's charge".
British Ordnance ML 4.2-Inch Mortar
The Ordnance ML 4.2-inch mortar was a heavy mortar used by the British Army during and after World War II, and was a smooth-bore weapon of the Stokes pattern, designed by the Armaments Research and Development Establishment and produced by the Royal Ordnance Factories. It entered widespread British service in 1942, equipping chemical warfare companies of the Royal Engineers (RE). The Mark 3 became the standard model.
The first combat use was at Second Battle of El Alamein, when the 66th Mortar Company (RE) was attached to the Australian 24th Infantry Brigade. During the battle, 66 Mortar Company provided intense, effective supporting fire on the 24th Brigade's exposed right flank, as the infantry advanced, expending all of the 4.2-inch HE mortar ammunition in the theatre.
Around mid-1943, the Royal Engineer chemical warfare companies were disbanded as an emergency expedient and one heavy mortar company of each infantry division machine-gun battalion was equipped with the mortar. This company was organized with sixteen 4.2-inch mortars, in four platoons of four mortars each. In early 1944, divisions in Italy also held a pool of mortars for issue to other units as needed, usually troops in the divisional anti-tank regiment, some regiments even converted one or more batteries to mortars.
Around mid-1943, the Royal Engineer chemical warfare companies were disbanded as an emergency expedient and one heavy mortar company of each infantry division machine-gun battalion was equipped with the mortar. This company was organized with sixteen 4.2-inch mortars, in four platoons of four mortars each. In early 1944, divisions in Italy also held a pool of mortars for issue to other units as needed, usually troops in the divisional anti-tank regiment, some regiments even converted one or more batteries to mortars.
Ordnance ML 4.2-inch mortars were slower to reach Commonwealth forces in the Pacific and Asia. Australian Army units in the South West Pacific theatre were reportedly the first to receive them, before forces in Burma.
The Pacific theatre of the war was obviously going to be an area I was keen to focus on with this collection, and an area not so widely covered in European collections, and I was not to be disappointed with the display of Japanese items, including small arms, artillery and of course a tank.
 |
| A good luck flag presented to Corporal Masayoshi Deura by family and friends from his hometown in the Tochigi Prefecture, northeast of Tokyo. He died on May 29th 1945 in Burma whilst on active service with the Japanese Imperial Army. |
Japanese WWII Vehicles & Guns
Japanese Type 94, 75mm Mountain Gun
This highly mobile pack artillery piece could be transported by horse or vehicle and was in service with the Japanese Army from 1935-45 and was used extensively in China and assigned to units of the Southern Expeditionary Army where it was sited in defensive positions on islands throughout the Dutch East Indies and the South Pacific Mandate, making it one of the most commonly encountered weapons by Allied Forces towards the closing stages of the war.
Based on a German Krupp design, the gun had a single piece barrel with a sliding breechblock, and its long split trail with a hydro-pneumatic recoil mechanism was based on a French Schneider design, and it could be fired with the trails opened or closed.
With a modular design construction, the gun can be broken down into eleven parts within three to five minutes for transport by animals or men, with the heaviest part weighing 210-pounds, and the weapon intended for transportation by six pack horses, or eighteen men.
Once in position it could be reassembled within ten minutes.
The Type 94 was capable of firing high explosive , armour piercing, shrapnel, chemical star, incendiary and smoke rounds.
Japanese Type 94, 37mm Anti-Tank Gun
In service from 1936 to the end of the war, the Type 94 AT Gun was typically assigned to combat infantry regiments in groups of four guns, and each manned by a squad of eleven soldiers.
It was based on the German 3.7cm PaK 36 and had, in trials, a claimed penetration capability of 20mm of armour at 1,100 yards, and 40mm at much shorter distances. In combat it proved effective against light Soviet armour, when used in the Nomonhan Incident in 1939, but was hopelessly obsolete when used against M4 Shermans in the Pacific War.

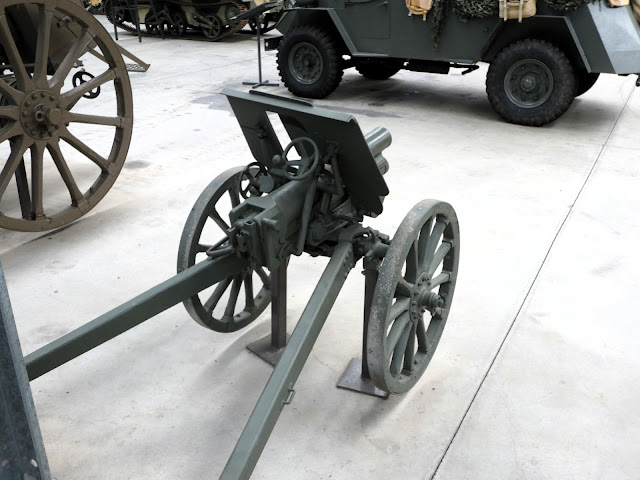

Japanese Type 92, 70mm MM Battalion Gun
In service with the Japanese Army from 1932 to 45, the Type 92 Battalion Gun was a light howitzer, used extensively in China and against Allied forces in the South Pacific and Southeast Asia.
Able to be used in the low angle direct fire mode for neutralising fortified positions, machine-gun positions and light armour the barrel could be quickly configured to near vertical with the use of a hand crank for indirect support fire.
It was designed to be pulled by a single horse, although it seems that in practice three horses were usually used, and the gun would fire an 8.37 pound shell, either high explosive, armour piercing or smoke to an effective range of about 3,060 yards, and were reportedly used with considerable effect when encountered by Allied troops.
Japanese Type 31, 75mm Mountain Gun
The Type 31 was introduced to the Imperial Japanese Army in 1898 and was first deployed in combat during the Russo-Japanese War 1904-1905.
The gun would remain in service with the Japanese to the end of World War II, firing high explosive rounds using smokeless powder cartridges capable of firing a 13-pound shell effectively out to a range of 4,700 yards, with a maximum range of 7,100 yards, and with this particular example being captured in Burma in 1944.
 |
| Another example of a Japanese Good Luck Flag. These flags were carefully folded and carried by young Japanese soldiers securely beneath their clothing for safe keeping, and were often taken as battle trophies on the death of the wearer. A growing trend has seen many of these signed flags being returned to the descendants of the soldier. |
Japanese Type 91, 105mm Light Howitzer
Introduced into service in 1931, the Type 91 10cm howitzer first saw service in China, and would see them used in large numbers during WWII with some 1,100 produced before wars end and another 100 manufactured in a motorised form.
The gun's design was based largely on the French Schneider Canon de 105mle that was evaluated by the Japanese in the late 1920's and is noticeably lighter than contemporary German and US 105mm designs of the same calibre, with this gun weighing less than standard 75mm types used in Europe during WWI.
 |
| Cadets of the Imperial Japanese Army during shooting training with Type 91 10-cm-howitzer at Fuji training ground. ca. 1935 |
 |
| An interesting collection of Japanese items collected around an overgrown track in New Guinea in the 1970's. |
 |
| More Japanese military items with the 'Surrender Pass' to be shown to Allied troops when attempting to come out with hands up, probably unused if history is anything to go by. |
Japanese Type 95, Ha-Go Light Tank
Produced between 1936-43, was a light tank used by the Japanese Army and the Special Naval Landing Force in the 1930's and the World War II.With about 2,300 of these tanks produced, they were the most numerous Japanese armoured fighting vehicle in WWII , and saw service in China, the Battle of Khalkhin Gol against the Soviets in 1939, Burma and the Pacific theatre.
The Australians regularly came up against them in Malaya, and New Guinea, often coming off the worse when confronted by the 2-pounder anti-tank guns pictured earlier.
The main armament consists of a Type 94, 37mm tank gun firing high explosive and armour piercing rounds, back up by two Type 97, 7.7mm machine guns, and is powered by a 120hp, six cylinder air-cooled inline diesel engine giving a maximum speed of 28mph and a range of about 130 miles.
Soviet WWII Vehicles & Guns
Russian SU-100 Tank Destroyer
The SU-100 (Samokhodnaya Ustanovka 100) is a Soviet tank destroyer armed with the D-10S 100 mm anti-tank gun in a casemate superstructure. It was used extensively during the last year of World War II and saw service for many years afterwards with the armies of Soviet allies around the world.
Russian T-70 Light Tank
The T-70 is a light tank used by the Red Army during World War II, replacing both the T-60 scout tank for reconnaissance and the T-50 light infantry tank for infantry support. The T-80 light tank was a more advanced version of the T-70 with a two-man turret—it was produced only in very small numbers when light tank production was abandoned. The T-90 self-propelled anti-aircraft gun was a prototype vehicle with twin machine guns, based on the T-70 chassis.
The T-70 was armed with a 45-mm L/46 gun Model 38 with forty-five rounds carried, and a coaxial 7.62-mm DT machine gun. The tank was operated by a driver and a commander who loaded and fired the gun. Armour thickness on the turret front was 60 mm, turret sides and rear: 35 mm, hull front and sides: 45 mm, roof and bottom: 10 mm.
On 26 March 1944, Sergeant Alexander Pegov of the 3rd Guards tank army, commanding a single T-70, saw a column of approximately 18 German tanks approaching. He took an ambush position hidden by foliage and then he waited. After a German PzKpfw V “Panther” tank came within 150 to 200 metres (160 to 220 yd), the T-70 suddenly opened fire with APCR ammunition and set fire to one Panther and immobilized another. The knocked-out Panthers blocked the road while the T-70 retreated. Pegov was promoted to a lieutenant and decorated as a Hero of the Soviet Union.
.jpg) |
| A T-70 light tank captured by German forces, April 1943. |
Russian T-60 Light Tank
The T-60 scout tank was a light tank produced by the Soviet Union from 1941 to 1942. During this period, 6,292 units were built. The tank was designed to replace the obsolete T-38 amphibious scout tank and saw action during World War II.The Kingdom of Romania used the T-60 chassis to build some locally-designed tank destroyers.
 |
| T-60 from the 3rd Guards Tank Brigade. A typical late production tank with an octagonal turret hatch and driver's hatch with an angular air intake. |
The tank was originally meant to be armed with a 12.7 mm machine gun like the T-40, but on the People's Commissar for Tank Industry Vyacheslav Malyshev's suggestion, it was up-armed by an automatic 20 mm TNSh cannon, a tank version of the ShVAK used on Soviet aircraft, since the weapon was in production in massive quantities easily to rival those of the DShK. Using an aircraft weapon on a ground vehicle presented multiple problems: the cannon easily succumbed to dust and could only penetrate 15 mm of perpendicular armour at 500 m, which proved inadequate against the newer up-armoured German tank designs, thus firmly relegating the T-60 to infantry support role.

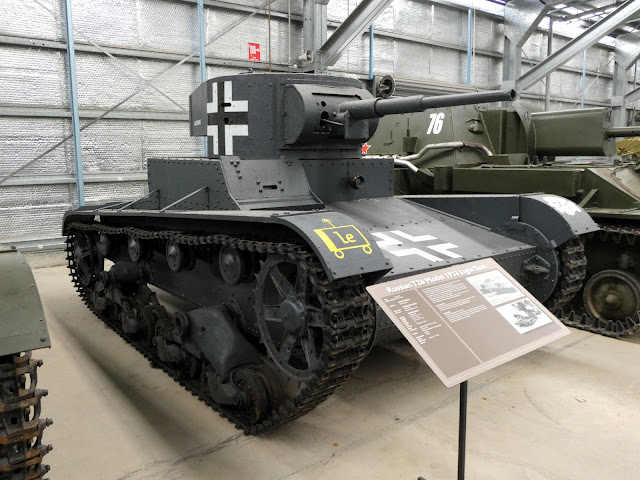

Russian T-26 Model 1931 Twin Turret Light Tank
The T-26 series of tanks were a development of the British Vickers 6-Ton Tank and one of the most successful tank designs of the 1930's until its light armour became vulnerable to newer anti-tank guns.
Though nearly obsolete by the beginning of WWII, the T-26 was the most numerous tank in the Red Army's armoured force during the German invasion of the Soviet Union in June 1941.
T-26 model 1931, twin-turreted version armed with two DT tank machine guns. The first series-produced variant of the T-26 that was equipped with turrets differing from the initial Vickers design (Soviet turrets were higher and had an observation window).
 |
| Twin-turret T-26 (with machine-gun armament) crossing a river during combat training of the Moscow Military District forces, 1936. |
Tanks produced from 1931 to March 1932 had a riveted hull and turrets, a silencer affixed with two clamps, and lacked any cover over the air outlet window.
About 1,177 T-26 mod. 1931 tanks armed with machine guns were accepted by the Red Army, which had 1,015 such twin-turreted tanks on 1 April 1933.
The T-26 fought the Germans and their allies during the Battle of Moscow in 1941-2, the Battle of Stalingrad and the Battle of the Caucuses in 1942-3 and some tank units of the Leningrad Front used their T26's until 1944.
Soviet T-26's fought their last actions in August 1945, during the defeat of the Japanese Kwantung Army in Manchuria.
Russian T-26 Model 1933 Light Tank
The most significant change in the T-26 1933 model was the transition from a twin turret armed with machine guns, to a newly designed single turret armed with a Model 1932 (20-K) 45mm anti-tank gun which was used in a variety of Soviet Tanks and fired the same ammunition as the infantry anti-tank version.
The new turret also incorporated a bustle on the rear to accommodate a 71-TK-1 tank radio, additional storage, and a ventilation fan.
This vehicle was acquired from Spain and during the restoration work, evidence of German army tactical markings were found indicating that the vehicle had been captured and used by the Germans during WWII, and those markings are replicated here.
Russian SU-76M Self Propelled Gun
The SU-76 (Samokhodnaya Ustanovka 76) was a Soviet light self-propelled gun used during and after World War II. The SU-76 was based on a lengthened version of the T-70 light tank chassis and armed with the ZIS-3 mod. 1942 76-mm divisional field gun. Developed under the leadership of chief designer S.A. Ginzburg (1900–1943). Its quite simple construction and multipurpose combat role made it the second most produced Soviet armoured fighting vehicle of World War II, after the T-34 medium tank.
According to table of organization and equipment of 1943, each light self-propelled gun regiment was equipped with 21 SU-76M, there were 119 such regiments in the Red Army by the end of World War II. In the end of 1944 and the beginning of 1945, 70 self-propelled gun divisions (16 SU-76M in each) were formed to be included into rifle divisions. Also 4 light self-propelled gun brigades of the Reserve of the Supreme High Command (60 SU-76M SPGs, 5 T-70 light tanks and 3 US M3A1 Scout Car armoured personnel carriers in each) were formed, starting from the first half of 1944.
.jpg) |
| Soviet SU-76M light self-propelled in the city battle in the Battle for Berlin. |
This was extremely useful in urban combats like the Battle of Berlin where good teamwork between infantry and AFVs was a key to success.
To improve the SU-76M's anti-armour capabilities, armour-piercing composite rigid (APCR) and hollow charge projectiles were introduced. This gave the SU-76M a better chance against heavily armoured German vehicles. A low profile, a low noise signature and good mobility were other advantages of the SU-76M. This was ideal for organizing ambushes and sudden flank or rear strikes in close combat, where the ZIS-3 gun was sufficient against most German armoured fighting vehicles.

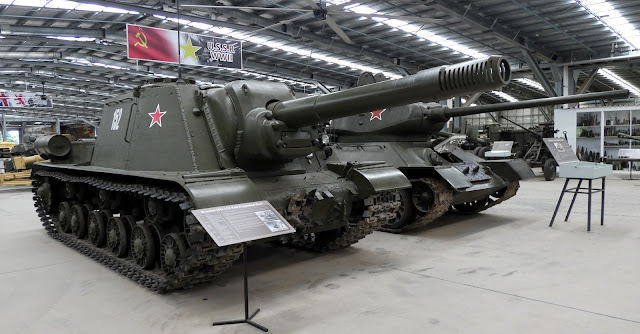

Russian ISU-152 Self Propelled Gun
The ISU-152 is a Soviet self-propelled gun developed and used during World War II. It was unofficially nicknamed Zveroboy "beast killer" in response to several large German tanks and guns coming into service, including Tigers and Panthers. Since the ISU-152's gun was mounted in a casemate, aiming it was awkward, and had to be done by repositioning the entire vehicle using the tracks. Therefore, it was used as mobile artillery to support more mobile infantry and armour attacks.
The ISU-152 was used for infantry and tank support in attacking fortified enemy positions in a direct-fire role, for artillery support on the battlefield in an indirect-fire role and for engagement against armoured vehicles in a direct-fire role.
This example was acquired from Bulgaria.
The Kharkiv Model V-2 was a Soviet diesel tank V12 engine designed at the Kharkiv Locomotive Factory and initially used to power the T-34 and KV tanks, but would also be used in the BT-7M, SU-85, SU-100, ISU-122 and ISU-152 Self Propelled Guns.
The power output of these engines ranged from 450-700hp but with gradual improvement later versions developed up to 1,200hp.
Russian T-34/85 Medium Tank
First deployed in 1940, the T-34 was a Soviet medium tank which had a profound and permanent effect on the fields of tank tactics and design, possessing as it did at the time of its introduction the best combination and balance of firepower, mobility, protection and ruggedness of any tank, although its initial battlefield effectiveness suffered from the unsatisfactory ergonomic layout of its crew compartment, scarcity of radios, poor optics and poor tactical employment.
In comparison with the T-34-85 program, the Germans instead chose an upgrade path based on the introduction of completely new, expensive, heavier, and more complex tanks, greatly slowing the growth of their tank production and helping the Soviets to maintain a substantial numerical superiority in tanks.
By May 1944, T-34-85 production had reached 1,200 tanks per month. In the entire war, production figures for all Panther types reached no more than 6,557, and for all Tiger types (including the Tiger I and Tiger II) 2,027. Production figures for the T-34-85 alone reached 22,559.
Oktyabrskaya proved her ability and bravery in battle, and was promoted to the rank of sergeant. After she died of wounds from battle in 1944, she was posthumously made a Hero of the Soviet Union, the Soviet Union's highest honour for bravery during combat. She was the first female tank driver to be awarded the title.
Russian 76mm (Zis-3) & 85mm (D-44) Divisional Field Guns
On the initiative of Chief Artillery Designer Vasiliy Gavrilovich Grabin and without state approval, not exactly a common or often rewarded attribute in the Soviet Union, Artillery Factory No. 92 began designing the ZiS-3 at the end of 1940.
The ZiS-3 combined the light carriage from the 57 mm ZiS-2 anti-tank gun and the powerful 76.2 mm barrel from the F-22USV, the previous divisional field gun, together with an addition of a muzzle brake that reduced recoil and prevented damage to the light carriage when firing.
 |
| 76mm (Zis-3) |
The gun was also quite popular with the German Wehrmacht. The gun was introduced into German service as the 7,62-cm-Feldkanone 288(r) and factories were retooled to produce ammunition for it.
The ZiS-3 had good anti-armour capabilities. Its armour-piercing round could knock out any early German light and medium tank. The frontal armour of later tanks, like the Tiger I and later the Panther, however, were immune to the ZiS-3.
A ZiS-3 battery had four guns, with three batteries making a division or battalion. Independent anti-tank regiments consisted of six batteries with no divisions. A staff battery included a fire-control section.
More than 103,000 ZiS-3s were produced by the end of the war, making it the most numerous Soviet field gun during the war.
 |
| 76mm (Zis-3) left and 85mm (D-44) right |
The barrel was developed from that of the T-34-85 tank and was capable of firing 20–25 high-explosive (HE), armor-piercing, and high-explosive antitank (HEAT) projectiles per minute.
The gun was essentially an improved version 45 mm anti-tank gun model 1932 mounted on a 37 mm 1-K anti-tank gun chassis (itself a licensed copy of the 3.7 cm Pak 36) using modern ammunition. Other improvements comprised semi-automatic breech, sight, firing button, suspension, reliable shield mount, and movable part re-balancing.
Russian 45mm Anti-Tank Gun M1937
The 45 mm anti-tank gun model 1937, nicknamed the Sorokapyatka , or "little forty-five", was a light quick-firing anti-tank gun used in the first stage of the German-Soviet War.
Due to insufficient armour penetration it was replaced in service by the longer-barrelled 45-mm anti-tank gun model 1942 (M-42) in 1942.
Russian 37mm Automatic Air Defence Gun M1939 (61-K)
The development was successful, but the army thought that the 45 mm calibre was a little too large for an automatic field weapon.
In January 1938 the Artillery Factory Number 8 in Sverdlovsk was ordered to develop a 37 mm weapon based on the same design. The task was fulfilled and firing trials of the new 61-K were conducted in October 1938.
Russian 152mm Howitzer-Gun M1937 (ML-20)
The 152 mm howitzer-gun M1937 (ML-20), was a Soviet heavy gun-howitzer. The gun was developed by the design bureau of the plant no 172, as a deep upgrade of the 152-mm gun M1910/34, in turn based on the 152-mm siege gun M1910, a pre-World War I design by Schneider. It was in production from 1937 to 1946. The ML-20 saw action in World War II, mainly as a corps/army level artillery piece of the Soviet Army. Captured guns were employed by Wehrmacht and the Finnish Army. Post World War II, the ML-20 saw combat in numerous conflicts during the mid to late twentieth century.
The gun was in production from 1937–1946. 6,884 guns were manufactured and about 4,000 ML-20S barrels for use in the SU-152 and ISU-152 self-propelled guns were also made.
The M1927 was issued to rifle and cavalry regiments of the Red Army. Artillery battalion of rifle brigade included one battery of M1927. Some guns were used by anti-tank artillery battalions.
By the early 1930s the Red Army (RKKA) started to look for a replacement for the 152-mm howitzer M1909 and the 152-mm howitzer M1910. Those pieces, developed before World War I, had unsprung fixed trail carriages and short barrels, which meant poor mobility, insufficient elevation and traverse angles and short range.
It was primarily used for indirect fire against enemy personnel, fortifications and key objects in the near rear. Heavy fragments of the OF-540 HE-Fragmentation shell were capable of piercing armour up to 20–30 mm thick, making a barrage dangerous to thinly armoured vehicles and to some extent to heavily armoured tanks.
 |
| In the early stage of the German invasion of the Soviet Union hundreds of ML-20 were captured by the Wehrmacht. The gun was adopted by the Germans as 15.2cm KH.433/1(r) and from February 1943, the Germans manufactured an ammunition for the gun. |
The gun was also equipped with armour-piercing shells for direct fire against armoured targets. Although not an ideal anti-tank gun because of its large size, slow traverse and slow rate of fire, in 1943 the ML-20 was one of the few guns effective against the new German tanks.
On 2nd August 1944, the ML-20 howitzer-gun No. 3922 became the first gun to shell German territory in the second half of World War II.

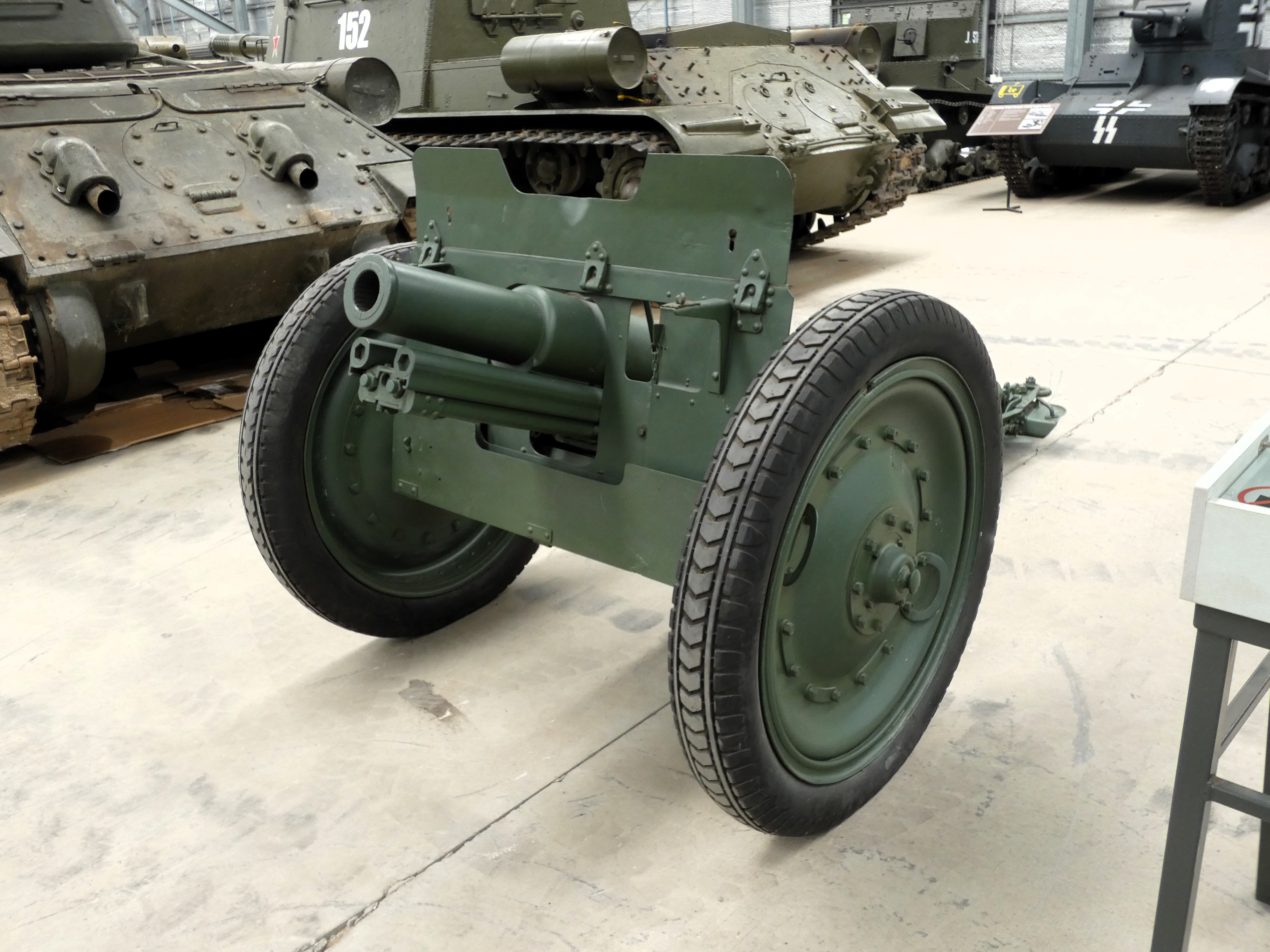

Russian 76mm Regimental Gun M1927
The 76 mm regimental gun M1927 was a Soviet infantry support gun. The gun was developed in 1927 by the design bureau of Orudiyno-Arsenalny Trest (OAT) and entered production in 1928.A total of 18,116 pieces were built. On June 22, 1941, the Red Army had 4,708 of these guns.
In 1943 the gun was replaced in production by the 76 mm regimental gun M1943, but remained in service until the end of the war. The Germans placed captured guns into service as the 7.62 cm Infanteriekanonehaubitze 290(r) (infantry gun-howitzer), while in the Finnish army they were known as 76 RK/27.
The gun was intended for destruction of light field fortifications and openly placed personnel by direct fire. HEAT shell gave it limited anti-tank capabilities.
Russian 152mm Howitzer-Gun M1938 (M-10)
152-mm howitzer M1938 (M-10) was a Soviet 152.4 mm (6 inch) howitzer of World War II. It was developed in 1937–1938. Although production of the gun was stopped in 1941, it saw combat with the Red Army until the end of World War II and remained in service until the 1950s. Captured pieces were used by Wehrmacht and the Finnish Army. The latter kept the M-10 in service until 2000. |
| 152-mm howitzer M1938 (M-10) |
Although both pieces were eventually modernized, resulting in the 152-mm howitzer M1909/30 and the 152-mm howitzer M1910/37 respectively, these were relatively minor upgrades which brought only limited improvement in some areas and didn't address others. It was clear that a completely new design was needed. However, at that time, the Soviets had little experience in developing modern artillery pieces and an attempted collaboration with the Germans failed because the design of the 152-mm howitzer M1931 (NG) too complex for the Soviet industry to produce efficiently, but these early failures gave Soviet developers some valuable experience.
Unlike its eventual successor, the D-1, the M-10 was not equipped with a muzzle brake. While softening recoil and thus allowing for a lighter carriage, a muzzle brake has the disadvantage of redirecting some of the gases that escape the barrel toward the ground where they raise dust, revealing the gun position.
The gun could be towed by an artillery tractor or a team of horses. In the latter case, a 400-kg limber was used.
The tank-mounted variant, M-10T, was mounted in the KV2 Heavy Tank.
This exhibit was acquired from the UK and had been captured and used by the Germans who repainted the gun in a camouflage scheme which was was recreated, as seen here, during restoration.
The British service name "Stuart" came from the American Civil War Confederate general J. E. B. Stuart and was used for both the M3 and the derivative M5 Light Tank. In British service they were given the nickname "Honey", after a tank driver remarked "She's a honey". The United States Army, the tanks were officially known as "Light Tank M3" and "Light Tank M5".
The M3 Stuarts were the first American-crewed tanks in World War II to engage the enemy in tank versus tank combat when used in the Philippines in December 1941 against the Japanese.
Internally, the radial engine was at the rear and the transmission to the driving sprockets at the front..
To relieve the demand for the radial aero-engines used in the M3, a new version was developed using twin Cadillac V8 automobile engines. The new model (initially called M4 but redesignated M5 to avoid confusion with the M4 Sherman) also featured a redesigned hull with a raised rear deck over the engine compartment, sloped glacis plate and driver's hatches moved to the top.
British and other Commonwealth armies were the first to use the Light Tank M3, as the "Stuart", in combat. From mid-November 1941 to the end of the year, about 170 Stuarts (in a total force of over 700 tanks) took part in Operation Crusader during the North Africa Campaign.
The U.S. Army initially deployed 108 Stuart light tanks to the Philippines in September 1941. The first U.S. tank versus tank combat to occur in World War II, began on 22 December 1941, when a platoon of five M3s engaged the Imperial Japanese Army (IJA) 4th Tank Regiment's Type 95 Ha-Go light tanks north of Damortis.
Although the U.S. light tanks had proven effective in jungle warfare, by late 1943, U.S. Marine Corps tank battalions were transitioning from their M3/M5 light tanks to M4 medium tanks
The first thirty-four M24s reached Europe in November 1944 and first saw combat during the Battle of the Bulge in December 1944.
The design of the M3 Lee and Grant was a compromise meant to quickly produce a tank for the British to combat the German Panzer III's and IV's. After extensive losses in North Africa and Greece, the British realised, despite their preference for the Grant tank, that to meet their needs for tanks with increased firepower, both the Lee and Grant tanks would need to be accepted if they were to overcome Rommel's Afrika Korps.
Of the 6,258 M3 variants manufactured, 2,887 (45%) were supplied to the British government for use by British and Commonwealth forces. 1,685 of these were Grants which the UK ordered directly from US industry for cash and which did not fall under the Lend-Lease arrangements.
The M3 Grant first saw action with units of the Royal Armoured Corps in North Africa during the Gazala battles of May 1942. However, with the arrival of the M4 Sherman tank from October 1942 the surviving M3s in North Africa became surplus and were mostly shipped on to India. 657 Grants and 75 Lees were supplied directly to North Africa.
The design was unusual because the main weapon – a larger calibre, medium-velocity 75 mm gun – was in an offset sponson mounted in the hull with limited traverse and a small turret with a lighter, high-velocity 37 mm gun sat on top of the tall hull.
The British desired modifications for the tank they were purchasing. A bustle rack was to be made at the back of the turret to house the Wireless Set No. 19. The turret was to be given thicker armor than in the original U.S. design, and the machine gun cupola was to be replaced with a simple hatch. Extended space within the turret of the new M3 also allowed the use of a smoke bomb launcher, although the addition of the radio would take the space for storage of fifty 37 mm rounds, reducing the ammunition capacity for that gun to 128 rounds.
The M3 tank's first action during the war was in 1942, during the North African Campaign. British Lees and Grants were in action against Rommel's forces at the Battle of Gazala on 27 May that year.
Their appearance was a surprise to the Germans, who were unprepared for the M3's 75 mm gun. They soon discovered the M3 could engage them beyond the effective range of their 5 cm Pak 38 anti-tank gun, and the 5 cm KwK 39 of the Panzer III, their main medium tank. The M3 was also vastly superior to the Fiat M13/40 and M14/41 tanks employed by the Italian troops, whose 47 mm gun was effective only at point-blank range, while only the few Semoventi da 75/18 self-propelled guns were able to destroy it using HEAT rounds.
The M3 Lee was shipped to the Soviet Union, although the Red Army referred to them as 'Grants' and the faults in the tank soon showed up to men who knew the benefits of the highly successful T-34, with the Soviets bestowing it the nickname, roughly translated as "a bed of honour for six men". With production of the T-34 reaching 1,500 tanks a month, the use of the M3 Lee declined after mid-1943 with its use confined to secondary fronts such as the Arctic Front.
When the British received their new M4 Sherman tanks in 1943, they quickly transferred 1,700 M3's to the China-Burma-India (CBI) theatre for use by Australian and Indian forces.
US M4A1 Sherman Medium Tank
The M4 Sherman evolved from the interim M3 Medium Tank, which had its main armament in a side sponson mount. The M4 retained much of the previous mechanical design but moved the main 75 mm gun into a fully traversing central turret.
Development and testing continued until late 1938. Several variants of gun and carriage were proposed until on 15 December a combination of the T10 gun and T5 carriage was officially adopted as the 37 mm gun M3 and carriage M4.
The M3 saw action for the first time during the defence of the Philippines in December 1941. It went on to become a factor in the Guadalcanal Campaign, where it was successfully employed against both Japanese armour and infantry. The light weight of the gun made it easy to move through difficult terrain.
M2A1 105mm howitzer (on the M2A2 carriage) was the standard weapon used by most field regiments of the Royal Australian Army (RAA) during the Vietnam conflict.
The M1 155mm was a towed howitzer developed and used by the United States Army. It was first produced in 1942 as a medium artillery piece. It saw service with the US Army during World War II, the Korean War. During this period it went through many modifications. In 1962 it was redesignated as the M114 and went on to see service in the Vietnam War, before being replaced by the M198 howitzer.
The gun was also used by the armed forces of many nations. The M114A1 remains in service in some countries.
The gun was developed into M1A1 and M2 variants. After World War II, the United States Army re-organized, and the gun was re-designated as the M59.

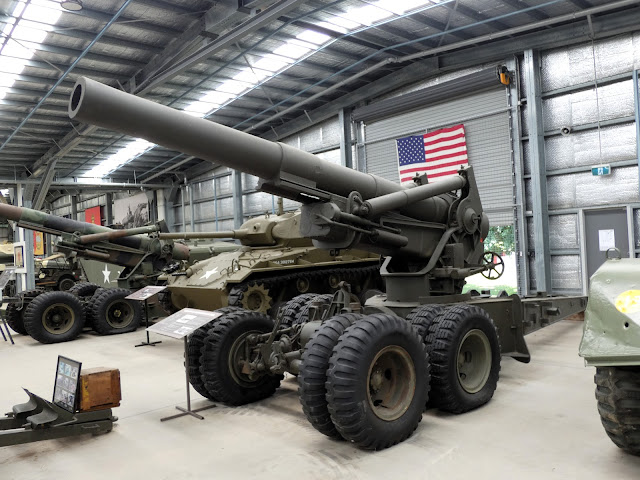

The original design of the M1 8-inch howitzer started in 1919, but lapsed until resurrected in 1927 as a partner piece for a new 155 mm gun.
The M115 saw service in World War II, the Korean War, the Vietnam War, the Second Taiwan Strait Crisis and the Croatian War of Independence. During World War II, the M1 was towed by the Mack 7⅓ ton 6×6 truck or the M4 tractor. Russian 76.2mm Air Defence Gun M1931
The Soviet 76mm air defence gun M1931 was approved for Red Army use in year 1931 and was first issued in 1932. It was capable of firing High Explosive, AA-Shrapnel, and Armour Piercing shells.
The M1931 and M1938 which succeeded it were used in the first stages of the German-Soviet War and were gradually replaced by the more powerful 52-K's.
The Germans captured large numbers of the M1931 guns and used them to arm a large number of their home front anti-aircraft gun units. The German name for these guns were 7.62cm Flak M31 (r) and 7.62cm Flak M38 (r); and after running out of captured ammunition the Germans modified the guns to 88-mm calibre and were renamed 7.62/8.8cm Flak M31 (r).
USA WWII Vehicles & Guns

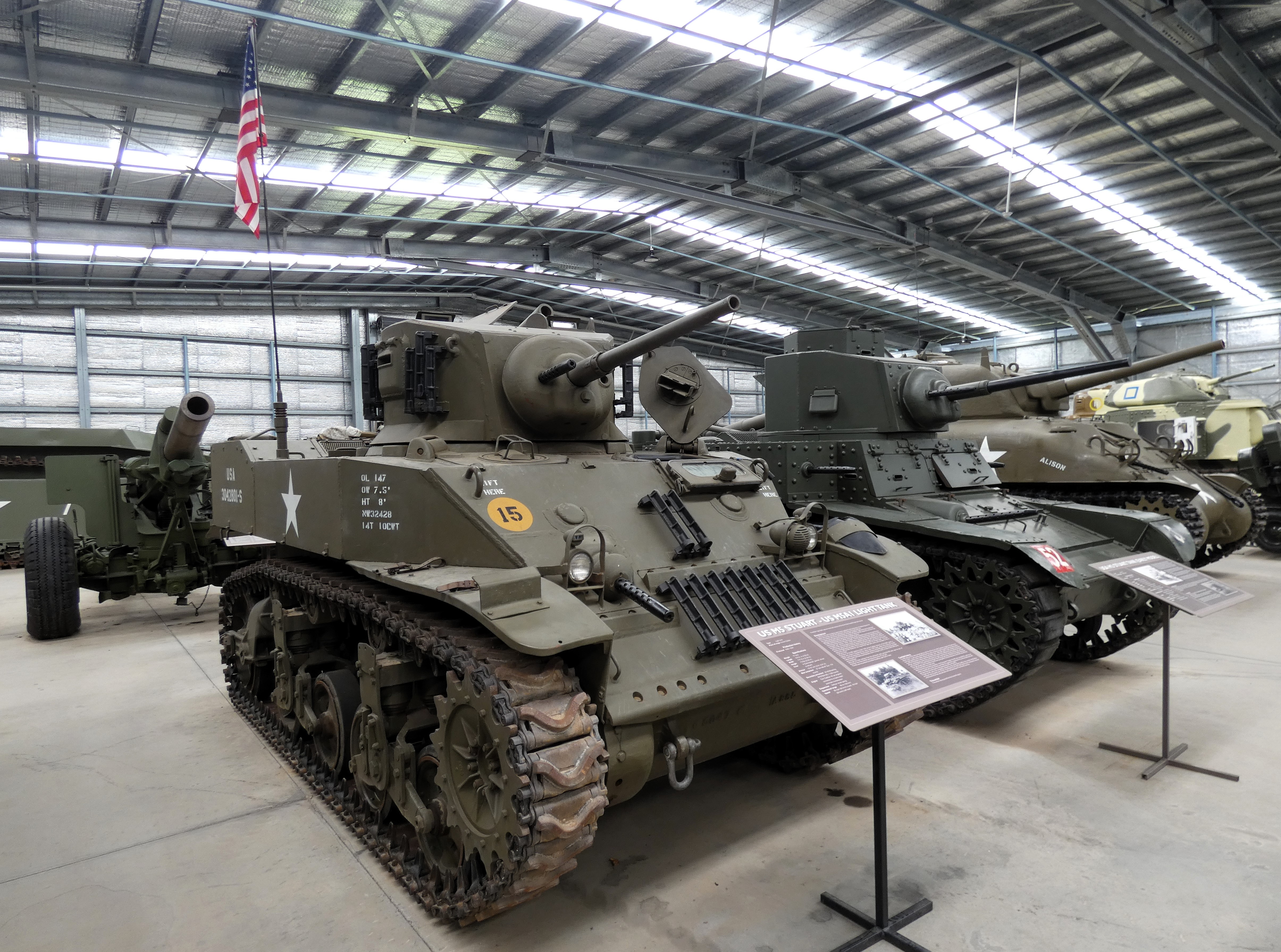

US M3 Stuart Light Tank (Early Model)
The M3 Stuart Light Tank series were the first vehicles delivered to Australia during the Second World War under the Lend Lease Scheme, receiving some 370 Stuart tanks between 1941 and 1943, both M3 and M3A1 types and both petrol and diesel engine versions.
The M3 Stuart equipped several units of the 1st Australian Armoured Division in 1942 and were the first Lend Lease tanks used in New Guinea against the Japanese by an Australian armoured unit.
The hull number 945, the octagonal welded turret, and the high commander's cupola indicates that this exhibit is one of the earliest variants of M3 Stuart to arrive in Australia.
 |
| A Stuart at Giropa Point during the attacks of late December 1942. http://anzacsteel.hobbyvista.com/Armoured%20Vehicles/m3inactionph_1.htm |
M3 Stuarts served in Papua in 1942 and 1943, with the 2/6th Armoured Regiment using them in action at Buna and Sanananda to attack Japanese bunkers and fortifications. In subsequent campaigns the M3 Stuart Tanks were replaced by larger and heavier Matilda tanks, which had thicker armour and were better able to operate in jungle terrain.
US M3 Stuart Light Tank MK III
The M3 Stuart formerly Light Tank M3, was an American light tank of World War II. It was supplied to British and other Commonwealth forces under lend-lease prior to the entry of the U.S. into the war. Thereafter, it was used by U.S. and Allied forces until the end of the war.The British service name "Stuart" came from the American Civil War Confederate general J. E. B. Stuart and was used for both the M3 and the derivative M5 Light Tank. In British service they were given the nickname "Honey", after a tank driver remarked "She's a honey". The United States Army, the tanks were officially known as "Light Tank M3" and "Light Tank M5".
Production of the vehicle started in March 1941 and continued until October 1943. Like its direct predecessor, the M2A4, the M3 was initially armed with a 37 mm M5 gun and five .30-06 Browning M1919A4 machine guns.
Although the main criticism from units using the Stuarts was that it lacked firepower, the improved M5 series kept the same 37 mm gun. The M5 gradually replaced the M3 in production from 1942 and was in turn succeeded by the Light Tank M24 in 1944.
 |
| A British M3 (Stuart I) knocked out during fighting in North Africa |
In Europe, Allied light tanks were given cavalry and infantry fire support roles since their light main armament was not competitive against heavier enemy armoured fighting vehicles. Though the Stuart was to be completely replaced by the newer M24 Chaffee, the number of M3s/M5s produced was so great (over 25,000 including the 75mm HMC M8) that the tank remained in service until the end of the war, and well after.
US M5A1 Stuart Light Tank
The M5 light tank first saw combat service with the US Army in Tunisia in 1943 in support of Free French Infantry units. It was quickly identified that the were unsuited for fighting against German tanks which had highly skilled crews, better armour and better guns.
Although used in high numbers in the first months of the Italian and Normandy campaigns, they suffered the same fate as their North African predecessors when they confronted highly trained German armour and anti-tank units, that would see a total of 777 M5's lost in North West Europe and 424 in Italy, with the high casualty rate seeing them relegated to a reconnaissance and flank security role for infantry and other armoured units.
Increasingly obsolete in Europe, the M5 was successfully used as an infantry support tank by the US Army and Marines against the Japanese Army whose tanks and anti-tank guns had minimal impact on the operational ability of the M5's.
This particular example was acquired from the UK.
US M24 Chaffee Light Tank
The Light Tank M24 Chaffee was designed in the United States to replace the ageing and obsolete M3 and M5 'Stuart' Light Tanks. |
| M24 Chaffee light tanks were first used in the Battle of the Bulge in the snowy Ardennes forests in December 1944. This tank belongs to the 18th Cavalry Reconnaissance Squadron, February 1945. |
The M24 started to enter widespread use in December 1944, but they were slow in reaching the front-line combat units. Some armoured divisions did not receive their first M24s until the war was over, and the contribution of the M24 to winning the war in Europe was insignificant, as too few arrived too late to replace the worn-out M5s of the armoured divisions.
Reports from the armoured divisions that received them prior to the end of hostilities were generally positive. Crews liked the improved off-road performance and reliability, but were most appreciative of the 75 mm main gun, which was a vast improvement over the 37 mm. The M24 was inferior in armour to German tanks, but the bigger gun at least gave its crews a much better chance to fight back when it was required, especially in infantry support. The M24's light armour made it vulnerable to virtually all German tanks, anti-tank guns, and hand-held anti-tank weapons.
US M3 Lee Medium Tank (Late Production)
The US Medium Tank, M3, was used during World War II. In British Commonwealth service, the tank was called by two names based on the turret configuration. Tanks employing US pattern turrets were called "Lee", named after Confederate General Robert E. Lee, while those with British pattern turrets were known as "Grant", named after Union General Ulysses S. Grant.
Of the 6,258 M3 variants manufactured, 2,887 (45%) were supplied to the British government for use by British and Commonwealth forces. 1,685 of these were Grants which the UK ordered directly from US industry for cash and which did not fall under the Lend-Lease arrangements.
The M3 Grant first saw action with units of the Royal Armoured Corps in North Africa during the Gazala battles of May 1942. However, with the arrival of the M4 Sherman tank from October 1942 the surviving M3s in North Africa became surplus and were mostly shipped on to India. 657 Grants and 75 Lees were supplied directly to North Africa.
By the end of 1942 the Australian Army had received approximately 255 M3 Lee tanks and 502 M3 Grant tanks. The 1st Australian Armoured Division was formed in 1941 with a view towards complementing the three Australian infantry divisions then in North Africa, however it was retained in Australia, following the outbreak of hostilities with Japan, and by 1941-42 the cadres of three armoured divisions were formed, all of them were equipped partly with the Lee, Grant and Stuart light tanks.
This exhibit is a late production model M3 Lee having no hull doors, and is fitted with the longer M3 gun barrel as opposed to the M2, with an increased length of 1 foot seven inches.
US M3 Grant Medium Tank
Design of the M3 commenced in July 1940, and the first M3s were operational in late 1941. I was well armed and armoured for the period, but due to design flaws (high silhouette, archaic sponson mounting of the main gun, below average off-road performance) it was not satisfactory and was withdrawn from frontline duty as soon as the M4 Sherman became available in large numbers.
Several of these new "Grant" tanks would also be equipped with sand shields for action in North Africa, though they often fell off. With these modifications accepted, the British ordered 2,000 Grants, with 1,685 ultimately built.
Their appearance was a surprise to the Germans, who were unprepared for the M3's 75 mm gun. They soon discovered the M3 could engage them beyond the effective range of their 5 cm Pak 38 anti-tank gun, and the 5 cm KwK 39 of the Panzer III, their main medium tank. The M3 was also vastly superior to the Fiat M13/40 and M14/41 tanks employed by the Italian troops, whose 47 mm gun was effective only at point-blank range, while only the few Semoventi da 75/18 self-propelled guns were able to destroy it using HEAT rounds.
In addition to the M3's superior range, they were equipped with high explosive shells to take out infantry and other soft targets, which previous British tanks lacked; upon the introduction of the M3, Rommel noted:
"Up to May of 1942, our tanks had in general been superior in quality to the corresponding British types. This was now no longer true, at least not to the same extent."

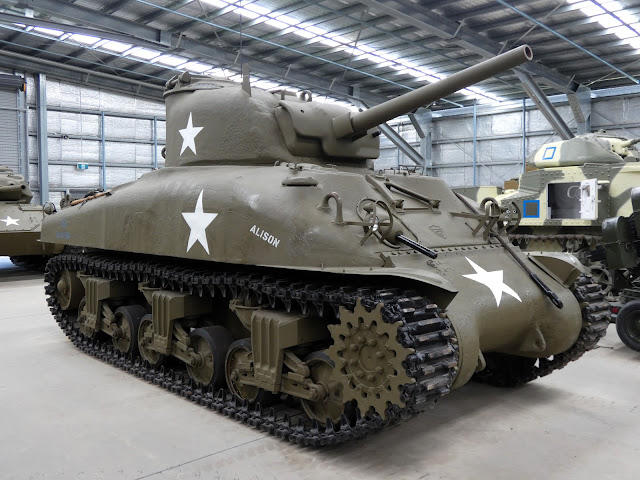

The M4 Sherman, officially Medium Tank, M4, was used by the United States and many of the other Western Allies in World War II and spearheaded many offensives by the Allies after 1942.
The M4 was the most-produced tank in American history, with 49,324 produced (including variants).
This conversion became the Sherman Firefly. The U.S. M1 gun and the 17-pounder had nearly identical bore diameters, but the British piece used a more voluminous cartridge case containing a much bigger propellant charge. This allowed it to penetrate 174 mm (6.9 in) of unsloped rolled homogeneous armour (RHA) at 100 m (110 yd) and 150 mm (5.9 in) at 1,000 m (1,100 yd) using APCBC ammunition.
In addition the following video looking at the merits of the Sherman is nicely presented in this video from the chaps at the Tank Museum, Bovington.
Although development of the M26 was was started in 1942, it was it was delayed because of significant opposition from within certain circles of the Army who believed the Army Doctrine required tank destroyers rather than heavy tanks to combat the German Tiger and Panther tanks.
Designed as a heavy tank, the Pershing was a significant upgrade from the M4 Sherman in terms of firepower and protection, however its mobility and manoeuvrability was unsatisfactory because it used the same engine that powered the M4A3 Sherman tank that was ten tons lighter.

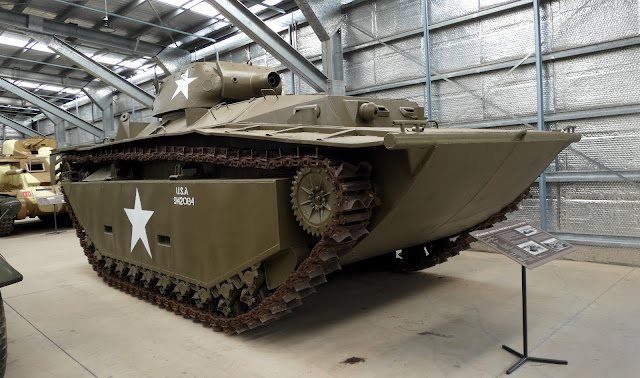

The LVT had its origins in a civilian rescue vehicle called the Alligator in 1935, to operate in swampy areas, inaccessible to both traditional cars and boats. The United States Marine Corps, which had been developing amphibious warfare doctrine became interested in the machine after learning about it through an article in Life magazine and arranged the design a more seaworthy model for military use.
The LVT-1 could carry 18 fully equipped men or 4,500 pounds (2,000 kg) of cargo. Originally intended to carry replenishment from ships to shore, they lacked armour protection and their tracks and suspension were unreliable when used on hard terrain. However, the Marines soon recognized the potential of the LVT as an assault vehicle. Armoured versions were introduced as well as fire support versions, dubbed Amtanks, which were fitted with turrets from Stuart series light tanks (LVT(A)-1) and Howitzer Motor Carriage M8s (LVT(A)-4). Production continued throughout the war, resulting in 18,616 LVTs delivered.
LVT's were mainly used for logistical support at Guadalcanal up until the development of the LVT-4 version which allowed for embarkation and disembarkation from a rear ramp, greatly improving combat utility by allowing troops to dismount from the vehicle much more quickly.
The largest use of LVTs was in the Leyte landing in October 1944, with nine US Army amtrac and two amtank battalions deployed. As there was no fighting on the beaches, this is one of the least famous LVTs operations. Over 1,000 LVT's took part in the Battle of Okinawa.
The Staghound entered service too late for use in the North African Campaign where its combination of armour, range and main armament would have been an advantage in a light forces reconnaissance role. As a result, it first saw operational service in Italy, where many units found its large physical size too restrictive in the narrow roads and streets of Europe.
The M8 was initially developed as a tank destroyer with a 37mm gun but by the time it entered service in early 1943 it was clear that the 37 mm gun would not be effective against German tanks; so it took on a reconnaissance role.
The M8 first saw action in Sicily in 1943 and was subsequently used by the US Army in Italy, Northwest Europe and the Pacific. In the latter theatre, it was used mostly on Okinawa and the Philippines, and was even employed in its original tank destroyer role, as most Japanese tanks had armour that was vulnerable to its 37 mm gun.
When the M4 tank first went into combat in North Africa with the British Army at El Alamein in 1942, it was superior to the lighter German and Italian tank designs of that era, but by 1944 the M4 was inferior to German heavy tanks, but was able to fight on with mutual support from numerical superiority and from growing numbers of fighter-bombers and artillery pieces.
This particular example was acquired from the UK and was produced in October/November 1943 by the Pressed Steel Car Company under Production Order T-3605 which required 1600 tanks consisting of 1374 M4A1's and 226 M4's. The serial number 28005 / USA 3036535 through to serial number 29604 / USA 3038134 were allocated to the tanks.
US M4A4 Sherman Medium Tank (British 17-Pounder Firefly)
The British anticipated future developments in German armour and began development of a 3 in (76.2 mm) anti-tank gun even before its 57 mm predecessor entered service. Out of expediency and also driven by delays in their new tank designs, they mounted the powerful 76.2 mm Ordnance QF 17-pounder gun in a standard 75 mm M4 Sherman turret.
The 17-pounder still could not penetrate the steeply sloped glacis plate of the Panther but it was expected to be able to pierce its gun mantlet at over 2,500 yd (2,300 m); moreover it was estimated it would defeat the Tiger I's frontal armour from 1,900 yd (1,700 m).
You can watch an interesting video covering the story of the development and use of the Sherman Firefly here.
In addition the following video looking at the merits of the Sherman is nicely presented in this video from the chaps at the Tank Museum, Bovington.
 |
| My Dad, sat in the drivers position (right) next to the CO's pennant for a RA Battery Command (OP) M4 Sherman V, at the liberation of Eindhoven in September 1944. This is a Sherman Artillery Observers tank with a telegraph pole standing in for a main 75mm gun. JJ's Wargames - Hell's Highway - Holland 2017 JJ's Wargames - Today in 1944 - Monday September 18th, Dad's War. |
My father served with Guards Armoured Division in a Sherman V (Observation Post) tank from Normandy to Germany and always spoke very fondly of the Sherman, underlying its reliability and the fact that its speed often enabled their gun tanks to defeat heavier German tanks by getting rapidly on to their flanks, anecdote I know, but from someone who did it for real.
US M26 Pershing Tank
Originally known as the T26E3 it was renamed the M26 Pershing in March 1945 after General of the Armies John J. Pershing, who led the American Expeditionary Force in Europe in World War I.Although development of the M26 was was started in 1942, it was it was delayed because of significant opposition from within certain circles of the Army who believed the Army Doctrine required tank destroyers rather than heavy tanks to combat the German Tiger and Panther tanks.
 |
| An M26 Pershing of A Company, 14th Tank Battalion, is transported aboard a pontoon ferry across the Rhine on March 12, 1945. |
Designed as a heavy tank, the Pershing was a significant upgrade from the M4 Sherman in terms of firepower and protection, however its mobility and manoeuvrability was unsatisfactory because it used the same engine that powered the M4A3 Sherman tank that was ten tons lighter.
The delays in design, development and production meant that only a small number of M26's saw combat during the final months of World War II, however the Pershing has left historians with one of the most impactful images of tank warfare in WWII when on the 6th March 1945, when tanks of the US 3rd Armoured Division fought their way into the bomb shattered city of Cologne, up against the Panthers and Panzer IV's of the 106th Panzer Brigade tasked with holding Nazi Germany's fourth largest city.
What followed was captured by an American combat film team as they monitored and filmed the progress of 3rd Armoured and the eventual clash in the streets, outside Cologne Cathedral between a German Panther tank and the mighty Pershing M26 codename Eagle 7 commanded by Sergeant Robert 'Bob' Early.
The video link below to the Battle Guide Channel gives an excellent forensic overview of this amazing film footage and is well worth a watch if you haven't seen it.

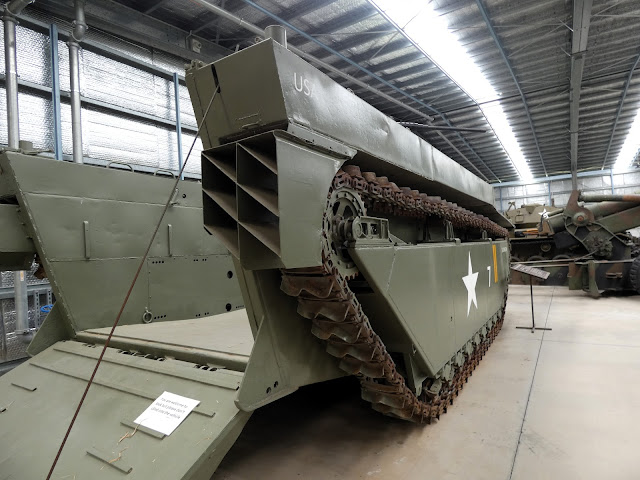

US LVT 4 (Landing Vehicle Tracked)
The Landing Vehicle, Tracked (LVT) is a small amphibious landing craft, used during World War II. Originally intended solely as cargo carriers for ship to shore operations, they rapidly evolved into assault troop and fire support vehicles as well. The types were all widely known as amphtrack, "amtrak", "amtrac", as well as "alligator" or "gator".
_approach_Iwo_Jima;fig14.jpg) |
| LVT-4 approaches Iwo Jima - Tracked landing vehicles (LVTs), jam-packed with 4th Marine Division troops, approach the Line of Departure at H-hour on D-day. In the centre rear can be seen the control vessels which attempted to maintain order in the landing. |
The first usage of LVT in combat was during the amphibious assault on Tarawa in late 1943. Of 125 vehicles used (50 new LVT-2s and 75 LVT-1s), only 35 remained operational by the end of the first day. Marines who arrived in LCVP "Higgins boats" could not cross the reef and had to wade through chest-deep or higher water while under heavy enemy fire; casualties were horrific and many who made to the beach alive had lost their rifles and other essential gear.
Despite their apparent utility however, the LVT-4 was too lightly armoured for combat, and the open crew and passenger compartment resulted in serious injuries from both machine gun fire and shrapnel. The operation also revealed the need for close-in fire support, which the Amtracs lacked.
As a result of Tarawa experience, standardized armour kits were provided for the LVTs to be used in contested landings, and the gun-armed "amtank" LVT(A)-1 and LVT(A)-4 were developed to provide fire support. Armed with a 75mm howitzer, the latter was was especially effective in this role as it was capable of destroying Japanese fortifications as it came ashore. Although usually used during landings only, in the Marianas campaign "amtanks" were employed inland, much like regular tanks.
 |
| Royal Marines land from Buffalo amphibians at Westkapelle during the invasion of Walcheren Island, 1st November 1944. |
Although usually associated with the Pacific theatre, toward the end of the war LVT's were employed in Europe as well. The U.S., British, and Canadian armies used the Buffalo in the 1944 Battle of the Scheldt, during Operation Plunder crossing of the Rhine in March 1945, along the Po River in Italy, across the river Elbe, and in a number of other river crossing operations.
US LVT(A)4 Landing Vehicle Tracked Armoured
The LVT(A)4 was based on the LVT(A)1, but were upgraded with the open topped turrets from the M8 Howitzer Motor Carriage with the M3 75mm howitzer.
Armed with a 75mm howitzer, the LVT(A)4 was especially effective in the fire support role as it was capable of destroying Japanese fortifications as it came ashore and after it landed on the beaches. As the infantry and machines moved inland, the LVT(A)4's were used like regular tanks.
LVT(A)4's saw action in many of the main Pacific Island battles such as Iwo Jima, the Marianas Campaign, the Leyte Landing, and the Battle of Okinawa.
 |
LVT(A)-4 of the Marine 3rd Armoured Amphibian Battalion. Beach at Peleliu - 15 September 1944. |
Small numbers were also employed in Europe by the US, British and Canadian Armies seeing action in the 1944 Battle of the Scheldt, during Operation Plunder crossing of the Rhine in March 1945, along the Po River in Italy, and across the river Elbe, together with other river crossing operations.
US Staghound Armoured Car
The T17E1 Armoured Car was an American armoured car manufactured during the Second World War. It saw service with British and other Commonwealth forces during the war under the name Staghound, but was never used on the front line by US forces. A number of other countries used the Staghound after the war; some vehicles continued to serve until the 1980s.
It saw most service at squadron and regimental headquarter level; an armoured car regiment having three Staghounds with the Regimental HQ and three with each HQ of the four squadrons in the regiment. Conditions for the Staghound improved when the Italian campaign became more mobile in the middle of 1944, and the Staghound was also used in north-west Europe campaign.
The Staghound entered service with the Australian Army in 1943, and the last of the vehicles were retired in the late 1960's.
US T17E2 Staghound Armoured Car (Anti-Aircraft)
The T17E2 was an T17E1 fitted with the normal turret removed and a Frazer-Nash-designed turret mounting two 0.5 inch (12.7 mm) M2 Browning heavy machine guns that could elevate between +75 and -10 degrees for anti-aircraft defence. The turrets were built in the US for British Motor Torpedo Boats. Redesign of the turret and mounting was carried out. 2,610 rounds were carried.
It had a reduced crew of three compared to the crew of five for a normal Staghound, consisting of a commander/gunner, loader and driver.
The T17E2 was developed as a result of continued Luftwaffe attacks on armoured columns in the Western Desert Campaign in early 1943, however by the time they were delivered to the army in Italy and North West Europe in April 1944 the threat of air attack by the Luftwaffe was negligible.
US M8 Greyhound Armoured Car
The M8 light armoured car is a 6×6 armoured car produced by the Ford Motor Company during World War II. It was used from 1943 by United States and British forces in Europe and the Pacific until the end of the war. In British service, the M8 was known as the "Greyhound", because of its top speed capabilities.
US M36 "Jackson" Tank Destroyer
The M36 tank destroyer (formally 90 mm Gun Motor Carriage, M36), was the last dedicated American tank destroyer used during the latter part of World War II. The M36 combined the hull of the M10 tank destroyer, and a large new turret mounting the 90 mm gun M3.
The T71 Gun Motor Carriage, which would become the M36, was completed in March 1943. However due to multiple issues, the production only started mid-1944 and the first deliveries arrived in the European theatre in September 1944, two years after the idea was first proposed.
 |

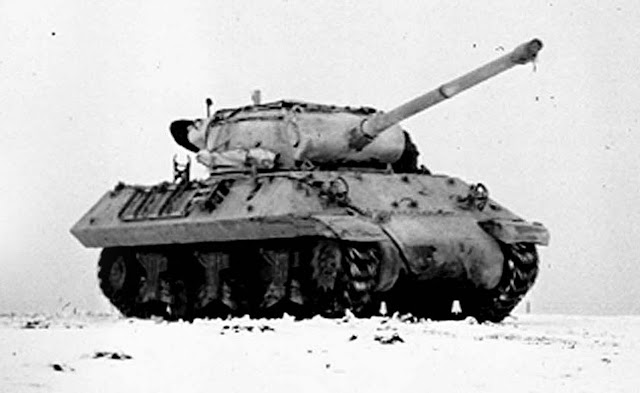

| M3690 mm GMC during the Battle of the Bulge in January 1945 |
The British nicknamed the M36 the "Jackson" after fames American Civil War General "Stonewall Jackson".
US M3 Armoured Personnel Carrier & M7B1 "Priest" 105 Howitzer Motor Carriage
The Carrier, Personnel Half-track M3 was an armoured vehicle used by the United States, the British Empire and other Allies during World War II and in the Cold War. Nearly 43,000 were produced and supplied to the US Army and Marines, as well as British Commonwealth and Soviet Red Army forces, serving on all fronts throughout the war.
The American 105 mm Howitzer Motor Carriage M7 was a self-propelled gun vehicle produced during World War II. It was given the official service name 105 mm Self Propelled Gun, Priest by the British Army, due to the pulpit-like machine gun ring, and following on from the Bishop and the contemporary Deacon self-propelled guns.
 |
M7 Priest of the 14th Armoured Field Artillery Battalion in Carentan, Normandy, France. 1944. |
US 37mm M3 Anti-Tank Gun
The 37 mm gun M3 is the first dedicated anti-tank gun fielded by United States forces in numbers. Introduced in 1940, it became the standard anti-tank gun of the U.S. infantry with its size enabling it to be pulled by a jeep.In the mid-1930s, the United States Army had yet to field a dedicated anti-tank artillery piece; anti-tank companies of infantry regiments were armed with .50 in (12.7 mm) machine guns. Although some consideration had been given to replacing the machine guns with a more powerful anti-tank gun, the situation began to change only after the outbreak of the Spanish Civil War. Combat experience from Spain suggested that a light anti-tank gun, such as the German 37 mm PaK 35/36, was capable of neutralizing the growing threat posed by tanks.
In January 1937, the Ordnance Committee recommended development of such a weapon; two PaK 36 guns were acquired for study. As the projected main user of the weapon, the Infantry Branch was chosen to oversee the work. They wanted a lightweight gun that could be moved around by the crew, so any ideas of using a larger calibre than that of the German gun were discarded.
While high-explosive and canister ammunition proved useful in stopping Japanese infantry attacks, against enemy fortifications the M3 was only somewhat effective because of its small high-explosive projectile. Its overall effectiveness and ease of use meant the gun remained in service with the Marine Corps and with some army units in the Pacific until the end of the war.
The experience of the M3 in the North African Campaign was completely different. The gun was not powerful enough to deal with late production German Panzer III and IV tanks.
Meanwhile, the Italian campaign was launched, and M3 guns saw action from the day of the Sicily landing on 10 July 1943. That day the 37 mm guns demonstrated once again both their effectiveness against pre-war tanks when they helped to repel an attack by Italian Renault R 35s and inability to cope with modern threats in a subsequent encounter with Tiger Is from the Hermann Göring division. The Italian theatre had a lower priority for reequipment than Northwest Europe, and some M3s were still in use in Italy in late 1944.
By mid-1944, the M3 had fallen out of favour even with airborne troops, despite their strong preference for compact and lightweight weapon systems.
The M3 was phased out of U.S. service soon after the end of the war.
US M101A1 (M2A2) 105mm Howitzer & M1A1 (M114) 155mm Howitzer
The 105mm M2A1 (M101A1) howitzer was the standard U.S. light field howitzer in World War II and saw action in both the European and Pacific theatres . Entering production in 1941, it quickly entered the war against the Imperial Japanese Army in the Pacific where it gained a reputation for accuracy and a powerful punch. The M101A1 fires 105 mm high explosive (HE) semi-fixed ammunition and has a range of 12,330 yards, making it suitable for supporting infantry.It continued to see service in the Korean and Vietnam Wars.
 |
| US M101A1 (M2A2) 105mm Howitzer (left) & M1A1 (M114) 155mm Howitzer (right) |
After Vietnam the M2 Howitzers continued to see limited service in the Australian Army Reserve, but were replaced with 81-millimetre mortars with an emphasis on the retention of indirect fire support skills. In regular service they were replaced by the 105 mm L119 Hamel gun and the 155-millimetre M198 howitzers.
The gun was also used by the armed forces of many nations. The M114A1 remains in service in some countries.
US M1 155mm "Long Tom" Field Artillery Gun
The 155 mm gun M1 and M2 (later M59), widely known as "Long Tom" were 15mm calibre field guns used as a heavy field weapon. The gun could fire a 100 lb shell to a maximum range of 13.7 miles, with an estimated accuracy life of 1,500 rounds.The Long Tom was also adopted by a number of other nations, including the United Kingdom, Austria, Israel, and the Netherlands.
The gun was capable of firing High Explosives, Smoke, Armour Piercing and Chemical Shells.
The ammunition for the 155 mm gun was "separate-loading", that is with the shell and the powder charge packaged, shipped and stored separately. The shell is lifted into position behind the breech and then rammed into the chamber to engage the shell's rotating band into the barrel rifling.
Ramming the shell home is followed by loading a number of powder bags, as required for the desired range. The powder charge could be loaded in up to seven charge settings. Once the powder is loaded, the breech plug is closed and locked, and a primer is placed in the breech plug's firing mechanism. After setting the elevation and azimuth, the gun is ready to fire. The firing mechanism is a device for initiating the ammunition primer. The primer then sets off the igniter which ignites the propelling charge of the ammunition. A continuous-pull lanyard first cocks the firing pin, then fires the primer when pulled.
US M115 203mm Howitzer
The M115 203 mm howitzer, also known as the M115 8-inch Howitzer, was a towed heavy howitzer used by the United States Army. Until the 1950's it was designated the 8-inch Howitzer M1.
This completes Part One of my overview of the A.A.& A. Museum collection, which will be followed in Part Two with a look and the World War Two German and Post War Modern equipment, together with the display of small arms and military uniforms.
I should also mention that the museum has a YouTube Channel
 |
| https://www.youtube.com/@ausarmour |
The museum seems to be constantly adding new exhibits to the collection and renovating pieces to full running order as material and time permit and I have enjoyed tuning in on their Workshop Wednesday videos showing the latest activities together with full feature length restoration recordings like the one featuring the M3 Grant shown in this post which was indeed an 'Incredible Transformation' and well worth sitting down with a brew if you enjoy seeing the amazing skill and ingenuity required to bring these vehicles back from derelict range targets or farm side sources of scrap iron.
Anyway I hope you've enjoyed the first post here on JJ's for 2024 and as always more anon
JJ
Thanks for the article and great photos JJ.
ReplyDeleteGreat stuff JJ. A thorough roundup of a great museum. I knew of its existence but had no idea the collection was so extensive. I'll definitely make the time to visit on my next trip to Cairns.
ReplyDeleteHi Chaps,
ReplyDeleteThanks for your comments.
I had a feeling this might be a fun post to kick the new year off with, and I think you will equally enjoy Part Two.
Lawrence - The museum is definitely a must see if you get the opportunity as the quality of the presentation of the vehicles and the very special rare examples that they have in the collection is very unique.
All the best and happy new year
JJ
Muchísimas gracias J.J. por acercarnos a ese extraordinario museo. Un abrazo cordial. César Puliafito, Bahía Blanca Argentina.
ReplyDelete
